M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head

Name: M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head
Brand: Matsumoto
Price: 5500 USD

Wholesale M5W Vertical And Horizontal Milling Machine 1370x305mm With Rotatable Turret Head from china suppliers

Brand Name : Matsumoto

Model Number : M5W

Certification : CE

Place of Origin : China

MOQ : 1

Price : $5500-6000

Payment Terms : T/T

Delivery Time : 10 working days

Packaging Details : plywood case

Table size : 1370*305mm

X-axis travel : 900mm

Y-axis travel : 400mm

Z-axis travel : 450mm

Spindle taper : R8(vertical)/ISO40(horizontal)

Spindle stroke : 127mm

Contact Now

M5W Vertical and Horizontal Turret Milling Machine Universal Turret Milling Machine

Description:

Turret milling machine is a versatile vertical-spindle mill with a removable, rotatable turret head holding multiple cutting tools. Unlike traditional mills, its turret swivels horizontally (usually 360 degrees) and adjusts vertically, enabling operators to quickly switch between different tools without frequent manual retooling.

PROJECT	UNIT	M5W
Table size	mm	1370*305
X-axis travel	mm	900
Y-axis travel	mm	400
Z-axis travel	mm	450
Spindle taper	/	R8(vertical)/ISO40(horizontal)
Spindle stroke	mm	127
Spindle speed	/	16(vertical)/12(horizontal)
Spindle feed	mm	0.76/0.003
Range of rotation	r/min	60-4540/5440(50HZ)
Slot(number*width)	mm	3*16
T-slot spacing	mm	76
Main motor power	kw	3HP/5HP(vertical)3kw(horizontal)
Lifting power	kw	1.1
Weight	kg	1560
Dimension(LWH)	mm	180017802150

Details Images:

	MILLING HEAD High speed spindle Head rotate 90°(LR) Head rotate 45°(FB)

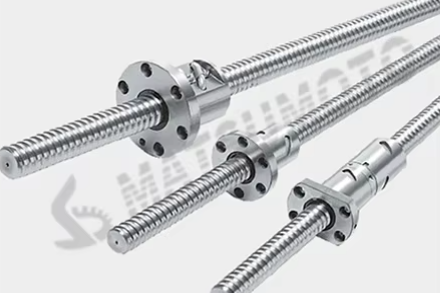

	TAIWAN SCREW The precision of the screw rod is strong, which improves the wear resistance and over all rigidity.
	SPINDLE Flanged spindle, powerful sleeve spindle, high precision and stability.
	WORKTABLE Grind the guide rail surface to improve the accuracy and service life of the machine tool.
	NEAT CIRCUIT The electric box is neat and clean, and the maintenance links are clear at a glance.
	3 AXIS DRO(OPTIONAL) 3 axis digital readout is optional, need extra cost.

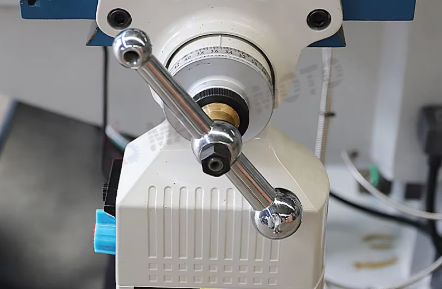

	X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve processing time. Tool feeder(optional).

Application:

The milling machine is a kind of universal light duty metal cutting machine. Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,etc.Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
